homeautomatisation:node-red:example_with_different_flows
This is an old revision of the document!

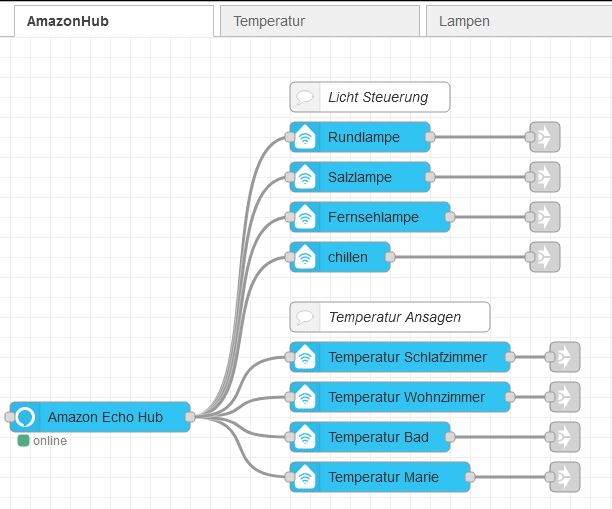

[ { "id": "3df220e5.564c5", "type": "tab", "label": "AmazonHub", "disabled": false, "info": "" }, { "id": "3122fce3.92af0c", "type": "amazon-echo-hub", "z": "3df220e5.564c5", "port": "80", "processinput": 0, "discovery": true, "x": 110, "y": 380, "wires": [ [ "c385dc9d.1fa788", "9e2f6ddd.e61e38", "17f328db.d03bef", "b0e5ad16.6d6c1", "9cff3fc6.ce219", "7ecb6785.e50328", "d3a17570.098738", "9e762f0.3ba42d" ] ] }, { "id": "c385dc9d.1fa788", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Temperatur Wohnzimmer", "topic": "zigbee.0.00158d000445963e", "x": 410, "y": 360, "wires": [ [ "64b6309.7ab9c5" ] ] }, { "id": "9e2f6ddd.e61e38", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Temperatur Marie", "topic": "zigbee.0.00158d0003cf07b4", "x": 390, "y": 440, "wires": [ [ "c33e1483.339cc8" ] ] }, { "id": "17f328db.d03bef", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Rundlampe", "topic": "sonoff.0.DVES_D43803", "x": 370, "y": 100, "wires": [ [ "3119c8d5.868c6" ] ] }, { "id": "b0e5ad16.6d6c1", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Salzlampe", "topic": "sonoff.0.DVES_D3C973", "x": 370, "y": 140, "wires": [ [ "584b023.a34ff7c" ] ] }, { "id": "9cff3fc6.ce219", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Fernsehlampe", "topic": "zigbee.0.0c4314fffea04c8e", "x": 380, "y": 180, "wires": [ [ "83a89f56.d14aa" ] ] }, { "id": "7ecb6785.e50328", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "chillen", "topic": "zigbee.0.0c4314fffea04c8e", "x": 350, "y": 220, "wires": [ [ "2cac1ab3.775dde" ] ] }, { "id": "d3a17570.098738", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Temperatur Bad", "topic": "zigbee.0.00158d0003cbc5f1", "x": 380, "y": 400, "wires": [ [ "7a45a1a2.8a0998" ] ] }, { "id": "b17cf583.509cd", "type": "link out", "z": "3df220e5.564c5", "name": "OutTempSchlafzimmer", "links": [ "c17a9e77.34bf28" ], "x": 575, "y": 320, "wires": [] }, { "id": "9e762f0.3ba42d", "type": "amazon-echo-device", "z": "3df220e5.564c5", "name": "Temperatur Schlafzimmer", "topic": "zigbee.0.00158d0004102b56", "x": 410, "y": 320, "wires": [ [ "b17cf583.509cd" ] ] }, { "id": "64b6309.7ab9c5", "type": "link out", "z": "3df220e5.564c5", "name": "OutTempWohnzimmer", "links": [ "7f8c2a0e.8afad4" ], "x": 575, "y": 360, "wires": [] }, { "id": "7a45a1a2.8a0998", "type": "link out", "z": "3df220e5.564c5", "name": "OutTempBad", "links": [ "4c3e6fbb.e20b8" ], "x": 575, "y": 400, "wires": [] }, { "id": "c33e1483.339cc8", "type": "link out", "z": "3df220e5.564c5", "name": "OutTempMarie", "links": [ "e873dc65.0a42c8" ], "x": 575, "y": 440, "wires": [] }, { "id": "3119c8d5.868c6", "type": "link out", "z": "3df220e5.564c5", "name": "inRundlampe", "links": [ "6d489538.08172c" ], "x": 555, "y": 100, "wires": [] }, { "id": "584b023.a34ff7c", "type": "link out", "z": "3df220e5.564c5", "name": "inSalzlampe", "links": [ "b999b4b5.18ac7" ], "x": 555, "y": 140, "wires": [] }, { "id": "83a89f56.d14aa", "type": "link out", "z": "3df220e5.564c5", "name": "inFernsehlampe", "links": [ "c2111f0a.deb328" ], "x": 555, "y": 180, "wires": [] }, { "id": "2cac1ab3.775dde", "type": "link out", "z": "3df220e5.564c5", "name": "inchillen", "links": [ "2d1321e3.69eab6" ], "x": 555, "y": 220, "wires": [] }, { "id": "80d82801.9cd72", "type": "comment", "z": "3df220e5.564c5", "name": "Temperatur Ansagen", "info": "", "x": 400, "y": 280, "wires": [] }, { "id": "f4f2a445.a21498", "type": "comment", "z": "3df220e5.564c5", "name": "Licht Steuerung", "info": "", "x": 380, "y": 60, "wires": [] } ]

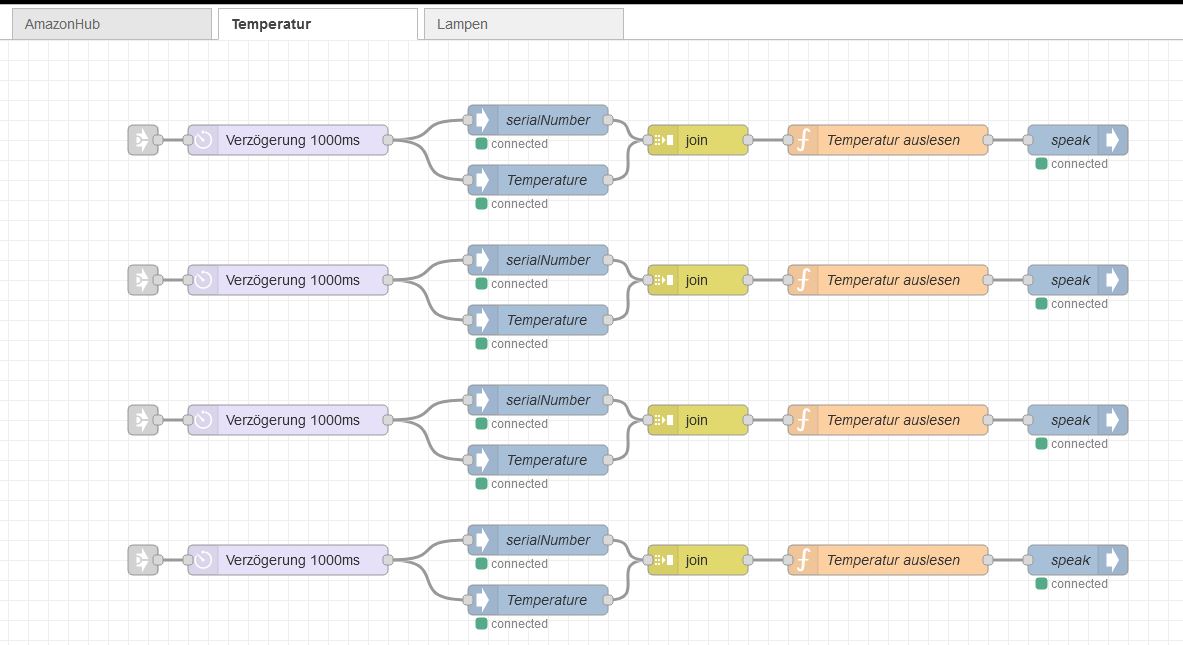

[ { "id": "6d200648.fa0bc8", "type": "tab", "label": "Temperatur", "disabled": false, "info": "" }, { "id": "c17a9e77.34bf28", "type": "link in", "z": "6d200648.fa0bc8", "name": "InTempSchlafzimmer", "links": [ "b17cf583.509cd" ], "x": 155, "y": 100, "wires": [ [ "de7a5f87.886c9" ] ] }, { "id": "228051ba.e38106", "type": "ioBroker out", "z": "6d200648.fa0bc8", "name": "speak", "topic": "", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1090, "y": 100, "wires": [] }, { "id": "8194d05a.1f0048", "type": "function", "z": "6d200648.fa0bc8", "name": "Temperatur auslesen", "func": "var device = msg.payload[0]\nvar str = msg.payload[1];\nvar res = str.substr(0, 5);\nmsg.payload = Math.round(res);\nmsg.payload = \"Es sind \" + msg.payload + \" Grad im Schlafzimmer\";\nmsg.url = \"\";\nvar command = \"alexa2.0.Echo-Devices.\" + device + \".Commands.speak\"\nmsg.topic = command;\nreturn msg;\n", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 900, "y": 100, "wires": [ [ "228051ba.e38106" ] ] }, { "id": "81d31f94.76bd88", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "Temperature", "topic": "zigbee.0.00158d0004102b56.temperature", "attrname": "payload", "payloadType": "value", "x": 550, "y": 140, "wires": [ [ "85f2e2c7.2e3ba" ] ] }, { "id": "2f4ff226.c5ca76", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "serialNumber", "topic": "alexa2.0.History.serialNumber", "attrname": "payload", "payloadType": "value", "x": 550, "y": 80, "wires": [ [ "85f2e2c7.2e3ba" ] ] }, { "id": "85f2e2c7.2e3ba", "type": "join", "z": "6d200648.fa0bc8", "name": "", "mode": "custom", "build": "array", "property": "payload", "propertyType": "msg", "key": "topic", "joiner": "\\n", "joinerType": "str", "accumulate": false, "timeout": "", "count": "2", "reduceRight": false, "reduceExp": "", "reduceInit": "", "reduceInitType": "", "reduceFixup": "", "x": 710, "y": 100, "wires": [ [ "8194d05a.1f0048" ] ] }, { "id": "de7a5f87.886c9", "type": "delay", "z": "6d200648.fa0bc8", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 300, "y": 100, "wires": [ [ "2f4ff226.c5ca76", "81d31f94.76bd88" ] ] }, { "id": "e80d9d5d.be2f5", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "Temperature", "topic": "zigbee.0.00158d000445963e.temperature", "attrname": "payload", "payloadType": "value", "x": 550, "y": 280, "wires": [ [ "2eabcbbd.abdea4" ] ] }, { "id": "6f36a6bc.c1ff88", "type": "function", "z": "6d200648.fa0bc8", "name": "Temperatur auslesen", "func": "var device = msg.payload[1]\nvar str = msg.payload[0];\nvar res = str.substr(0, 5);\nmsg.payload = Math.round(res);\nmsg.payload = \"Es sind \" + msg.payload + \" Grad im Wohnzimmer\";\nmsg.url = \"\";\nvar command = \"alexa2.0.Echo-Devices.\" + device + \".Commands.speak\"\nmsg.topic = command;\nreturn msg;\n", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 900, "y": 240, "wires": [ [ "bac5a475.2635d8" ] ] }, { "id": "bac5a475.2635d8", "type": "ioBroker out", "z": "6d200648.fa0bc8", "name": "speak", "topic": "", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1090, "y": 240, "wires": [] }, { "id": "a74bb881.d62de", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "serialNumber", "topic": "alexa2.0.History.serialNumber", "attrname": "payload", "payloadType": "value", "x": 550, "y": 220, "wires": [ [ "2eabcbbd.abdea4" ] ] }, { "id": "2eabcbbd.abdea4", "type": "join", "z": "6d200648.fa0bc8", "name": "", "mode": "custom", "build": "array", "property": "payload", "propertyType": "msg", "key": "topic", "joiner": "\\n", "joinerType": "str", "accumulate": false, "timeout": "", "count": "2", "reduceRight": false, "reduceExp": "", "reduceInit": "", "reduceInitType": "", "reduceFixup": "", "x": 710, "y": 240, "wires": [ [ "6f36a6bc.c1ff88" ] ] }, { "id": "e3f8393b.6dab68", "type": "delay", "z": "6d200648.fa0bc8", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 300, "y": 240, "wires": [ [ "e80d9d5d.be2f5", "a74bb881.d62de" ] ] }, { "id": "7f8c2a0e.8afad4", "type": "link in", "z": "6d200648.fa0bc8", "name": "InTempWohnzimmer", "links": [ "64b6309.7ab9c5" ], "x": 155, "y": 240, "wires": [ [ "e3f8393b.6dab68" ] ] }, { "id": "7fb5182e.5a6328", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "Temperature", "topic": "zigbee.0.00158d0003cbc5f1.temperature", "attrname": "payload", "payloadType": "value", "x": 550, "y": 560, "wires": [ [ "90164310.11a65" ] ] }, { "id": "7acb7045.f7b1b8", "type": "function", "z": "6d200648.fa0bc8", "name": "Temperatur auslesen", "func": "var device = msg.payload[1]\nvar str = msg.payload[0];\nvar res = str.substr(0, 5);\nmsg.payload = Math.round(res);\nmsg.payload = \"Es sind \" + msg.payload + \" Grad bei Marie\";\nmsg.url = \"\";\nvar command = \"alexa2.0.Echo-Devices.\" + device + \".Commands.speak\"\nmsg.topic = command;\nreturn msg;\n", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 900, "y": 520, "wires": [ [ "13499fd2.2e26a" ] ] }, { "id": "13499fd2.2e26a", "type": "ioBroker out", "z": "6d200648.fa0bc8", "name": "speak", "topic": "", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1090, "y": 520, "wires": [] }, { "id": "7b0a96bc.18a688", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "serialNumber", "topic": "alexa2.0.History.serialNumber", "attrname": "payload", "payloadType": "value", "x": 550, "y": 500, "wires": [ [ "90164310.11a65" ] ] }, { "id": "90164310.11a65", "type": "join", "z": "6d200648.fa0bc8", "name": "", "mode": "custom", "build": "array", "property": "payload", "propertyType": "msg", "key": "topic", "joiner": "\\n", "joinerType": "str", "accumulate": false, "timeout": "", "count": "2", "reduceRight": false, "reduceExp": "", "reduceInit": "", "reduceInitType": "", "reduceFixup": "", "x": 710, "y": 520, "wires": [ [ "7acb7045.f7b1b8" ] ] }, { "id": "789bf35f.fe611c", "type": "delay", "z": "6d200648.fa0bc8", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 300, "y": 520, "wires": [ [ "7fb5182e.5a6328", "7b0a96bc.18a688" ] ] }, { "id": "2d327ece.563e9a", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "Temperature", "topic": "zigbee.0.00158d0003cbc5f1.temperature", "attrname": "payload", "payloadType": "value", "x": 550, "y": 420, "wires": [ [ "7b868f75.4aa7f8" ] ] }, { "id": "6807364f.9f9838", "type": "function", "z": "6d200648.fa0bc8", "name": "Temperatur auslesen", "func": "var device = msg.payload[1]\nvar str = msg.payload[0];\nvar res = str.substr(0, 5);\nmsg.payload = Math.round(res);\nmsg.payload = \"Es sind \" + msg.payload + \" Grad im Bad\";\nmsg.url = \"\";\nvar command = \"alexa2.0.Echo-Devices.\" + device + \".Commands.speak\"\nmsg.topic = command;\nreturn msg;\n", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 900, "y": 380, "wires": [ [ "e38d8c2f.03c258" ] ] }, { "id": "e38d8c2f.03c258", "type": "ioBroker out", "z": "6d200648.fa0bc8", "name": "speak", "topic": "", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 1090, "y": 380, "wires": [] }, { "id": "9352dc95.be3768", "type": "ioBroker get", "z": "6d200648.fa0bc8", "name": "serialNumber", "topic": "alexa2.0.History.serialNumber", "attrname": "payload", "payloadType": "value", "x": 550, "y": 360, "wires": [ [ "7b868f75.4aa7f8" ] ] }, { "id": "7b868f75.4aa7f8", "type": "join", "z": "6d200648.fa0bc8", "name": "", "mode": "custom", "build": "array", "property": "payload", "propertyType": "msg", "key": "topic", "joiner": "\\n", "joinerType": "str", "accumulate": false, "timeout": "", "count": "2", "reduceRight": false, "reduceExp": "", "reduceInit": "", "reduceInitType": "", "reduceFixup": "", "x": 710, "y": 380, "wires": [ [ "6807364f.9f9838" ] ] }, { "id": "af564bbe.f5d198", "type": "delay", "z": "6d200648.fa0bc8", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 300, "y": 380, "wires": [ [ "2d327ece.563e9a", "9352dc95.be3768" ] ] }, { "id": "4c3e6fbb.e20b8", "type": "link in", "z": "6d200648.fa0bc8", "name": "inTempBad", "links": [ "7a45a1a2.8a0998" ], "x": 155, "y": 380, "wires": [ [ "af564bbe.f5d198" ] ] }, { "id": "e873dc65.0a42c8", "type": "link in", "z": "6d200648.fa0bc8", "name": "inTempMarie", "links": [ "c33e1483.339cc8" ], "x": 155, "y": 520, "wires": [ [ "789bf35f.fe611c" ] ] } ]

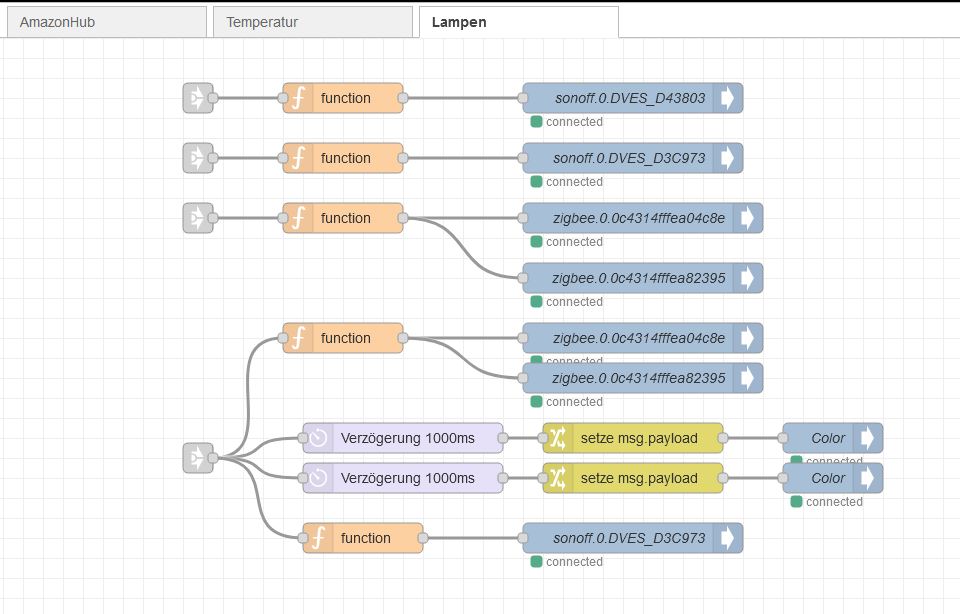

[ { "id": "b66f5b18.058318", "type": "tab", "label": "Lampen", "disabled": false, "info": "" }, { "id": "9f1085ad.a9a0c8", "type": "function", "z": "b66f5b18.058318", "name": "", "func": "if(msg.payload === \"on\"){\nmsg.payload = true;\n}\nif(msg.payload === \"off\"){\nmsg.payload = false;\n}\nreturn msg;", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 60, "wires": [ [ "3dc56a9.4a91a16" ] ] }, { "id": "3dc56a9.4a91a16", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "sonoff.0.DVES_D43803", "topic": "sonoff.0.DVES_D43803.POWER", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 650, "y": 60, "wires": [] }, { "id": "991d4d4a.8233a8", "type": "function", "z": "b66f5b18.058318", "name": "", "func": "if(msg.payload === \"on\"){\nmsg.payload = true;\n}\nif(msg.payload === \"off\"){\nmsg.payload = false;\n}\nreturn msg;", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 120, "wires": [ [ "ec275c63.3439b8" ] ] }, { "id": "ec275c63.3439b8", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "sonoff.0.DVES_D3C973", "topic": "sonoff.0.DVES_D3C973.POWER", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 650, "y": 120, "wires": [] }, { "id": "779d38d1.d2c38", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "zigbee.0.0c4314fffea04c8e", "topic": "zigbee.0.0c4314fffea04c8e.state", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 660, "y": 180, "wires": [] }, { "id": "3918dcc3.041c94", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "zigbee.0.0c4314fffea82395", "topic": "zigbee.0.0c4314fffea82395.state", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 660, "y": 240, "wires": [] }, { "id": "eaf2faa7.2a221", "type": "function", "z": "b66f5b18.058318", "name": "", "func": "if(msg.payload === \"on\"){\nmsg.payload = true;\n}\nif(msg.payload === \"off\"){\nmsg.payload = false;\n}\nreturn msg;", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 180, "wires": [ [ "779d38d1.d2c38", "3918dcc3.041c94" ] ] }, { "id": "53df81cd.7e0338", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "zigbee.0.0c4314fffea04c8e", "topic": "zigbee.0.0c4314fffea04c8e.state", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 660, "y": 300, "wires": [] }, { "id": "3c1705fb.1af832", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "zigbee.0.0c4314fffea82395", "topic": "zigbee.0.0c4314fffea82395.state", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 660, "y": 340, "wires": [] }, { "id": "80337c5e.4581d8", "type": "function", "z": "b66f5b18.058318", "name": "", "func": "if(msg.payload === \"on\"){\nmsg.payload = true;\n}\nif(msg.payload === \"off\"){\nmsg.payload = false;\n}\nreturn msg;", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 360, "y": 300, "wires": [ [ "53df81cd.7e0338", "3c1705fb.1af832" ] ] }, { "id": "436c9da8.5f65c4", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "Color", "topic": "zigbee.0.0c4314fffea82395.color", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 850, "y": 400, "wires": [] }, { "id": "1249ff85.35382", "type": "function", "z": "b66f5b18.058318", "name": "", "func": "if(msg.payload === \"on\"){\nmsg.payload = true;\n}\nif(msg.payload === \"off\"){\nmsg.payload = false;\n}\nreturn msg;", "outputs": 1, "noerr": 0, "initialize": "", "finalize": "", "libs": [], "x": 380, "y": 500, "wires": [ [ "e47ef103.43965" ] ] }, { "id": "e47ef103.43965", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "sonoff.0.DVES_D3C973", "topic": "sonoff.0.DVES_D3C973.POWER", "ack": "false", "autoCreate": "true", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 650, "y": 500, "wires": [] }, { "id": "14023e21.4d891a", "type": "change", "z": "b66f5b18.058318", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "#fff300", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 650, "y": 400, "wires": [ [ "436c9da8.5f65c4" ] ] }, { "id": "b16ea62d.03697", "type": "change", "z": "b66f5b18.058318", "name": "", "rules": [ { "t": "set", "p": "payload", "pt": "msg", "to": "#ff0000", "tot": "str" } ], "action": "", "property": "", "from": "", "to": "", "reg": false, "x": 650, "y": 440, "wires": [ [ "6d9a0c7c.889304" ] ] }, { "id": "6d9a0c7c.889304", "type": "ioBroker out", "z": "b66f5b18.058318", "name": "Color", "topic": "zigbee.0.0c4314fffea04c8e.color", "ack": "false", "autoCreate": "false", "stateName": "", "role": "", "payloadType": "", "readonly": "", "stateUnit": "", "stateMin": "", "stateMax": "", "x": 850, "y": 440, "wires": [] }, { "id": "a72aaab7.6cba28", "type": "delay", "z": "b66f5b18.058318", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 420, "y": 400, "wires": [ [ "14023e21.4d891a" ] ] }, { "id": "7d9c229c.7410e4", "type": "delay", "z": "b66f5b18.058318", "name": "", "pauseType": "delay", "timeout": "1000", "timeoutUnits": "milliseconds", "rate": "1", "nbRateUnits": "1", "rateUnits": "second", "randomFirst": "1", "randomLast": "5", "randomUnits": "seconds", "drop": false, "x": 420, "y": 440, "wires": [ [ "b16ea62d.03697" ] ] }, { "id": "6d489538.08172c", "type": "link in", "z": "b66f5b18.058318", "name": "OutRundlampe", "links": [ "3119c8d5.868c6" ], "x": 215, "y": 60, "wires": [ [ "9f1085ad.a9a0c8" ] ] }, { "id": "b999b4b5.18ac7", "type": "link in", "z": "b66f5b18.058318", "name": "OutSalzlampe", "links": [ "584b023.a34ff7c" ], "x": 215, "y": 120, "wires": [ [ "991d4d4a.8233a8" ] ] }, { "id": "c2111f0a.deb328", "type": "link in", "z": "b66f5b18.058318", "name": "OutFernsehlampe", "links": [ "83a89f56.d14aa" ], "x": 215, "y": 180, "wires": [ [ "eaf2faa7.2a221" ] ] }, { "id": "2d1321e3.69eab6", "type": "link in", "z": "b66f5b18.058318", "name": "Outchillen", "links": [ "2cac1ab3.775dde" ], "x": 215, "y": 420, "wires": [ [ "80337c5e.4581d8", "a72aaab7.6cba28", "7d9c229c.7410e4", "1249ff85.35382" ] ] } ]
